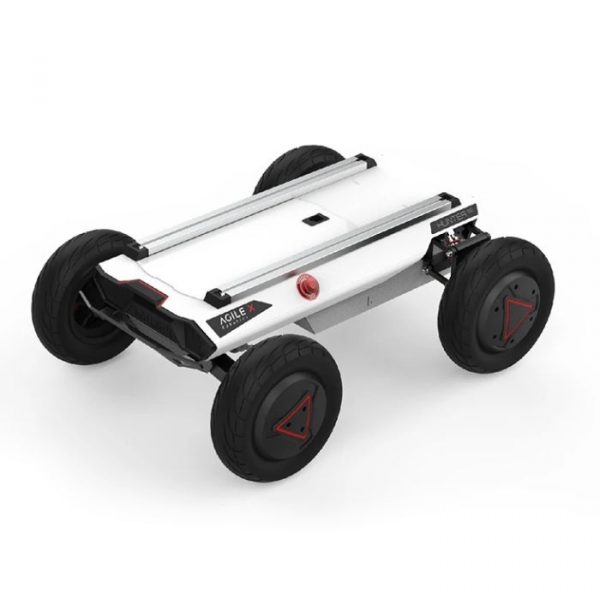

Agile·X Hunter SE

HUNTER SE is the Ackerman front steering drive-by-wire chassis designed for the challenging road conditions and speed requirements of urban roads. It features an ultra-compact design with the cutting-edge speed of 4.8m/s.

6.760,00  (Exc.VAT)

Available on backorder

Quantity

Description


HUNTER SE





HUNTER SE is the Ackerman front steering drive-by-wire chassis designed for the challenging road conditions and speed requirements of the urban roads. lt features an ultra-compact design with cutting-edge speed of 4.8m/s, better climbing capability and overcoming obstacles. Based on modular design and standard CAN interface, user can easily install and expand series autonomous system components to realize autonomous driving and commercial robot applications such as parcel delivery, unmanned logistics, un-manned meal delivery, scenic spot patrolling, etc.


Upgraded,Power System for High-speed Driving

Inherited the simplified design and steel body of the HUNTER series, the HUNTER SE, with an upgraded power system and the in-wheel hub motor technology, can provide a high driving spew of up to 4.8m/s. Taking the advantage of front steering similar to motor vehicles, the HUNTER can precisely control the motion while minimizing the wear and tear of the tier, suitable for long-time challenging indoor and outdoor operations.

 Upgraded Driving Speed

 Better Climb Capability

 High Load Capacity




Modular Shock Absorption Systems Portable Replacement Battery

The HUNTER SE has a combination of modular shock absorption systems including a swing arm at the front wheel and independent suspension at the back wheel, which enable it to easily traverse bumpers on city roads and climb ramps in industrial parks. With the onboard battery management system and the quick release battery replacement design, your robot can enjoy non-stop operation of achieving high efficiency in different commercial autonomous driving applications.

 Modular Shock Absorption

 In-wheel Hub Motor

 Quick to replace Battery




Applications

Designed for the challenging road conditions and speed requirements of the urban roads, the HUNTER SE is dedicated to the development and commercial implementation of robotics and autonomous driving applications, including autonomous parcel delivery, unmanned logistics, unmanned food delivery, unmanned patrolling, etc.




Expandable Load to Support Rapid Secondary Development

Hunter SE can easily integrate third-party sensors, IMU and more in need to quickly build the robotic applications through the CAN protocol, as well as easy to access power from Bunker Pro. Also, we provide rich open-source SDK and ROS_PACKAGE.

 Reserve standard profile holes to support quick construction of the top loads (Sensing, IPC, IMU, router, camera, etc.)

 Support custom design of aluminum sensor bracket

 Support more advanced autonomous driving systems(Such as ROS, Apollo, etc.)

Dimensions 820*640*310mm External power supply 24V/15A
Height 123mm Power Drive Rear wheel hub motor driven
Weight 42kg Motor 350W*2 (Brushless DC motor)
MAXIMUM PAYLOAD 50kg Operating temperature -20°C -60°C
MAX SPEED 4.8m/s Communication interface Standard CAN
Climbing Ability 30° (No load) Protection Level IP55
Minimum Turning Radius 1.5m Battery 24V30Ah lithium battery
Obstacle Surmounting Capacity 50mm Charger AC220V Independent charger
Battery Running Time 2-3h Charging Time 3h
Running mileage >30km Braking Method 2m
