Agile·X bundle Scout Mini + R&D Kit Pro -

Description

A fully integrated solution for robotics research and development with our Scout Mini platform. Equipped with a full suite of sensors to support indoor SLAM, Navigation and Vision based applications. A powerful NVIDIA Jetson Nano computer comes pre-installed with Linux and ROS Ubuntu 18.4. Scout Mini Development kit accelerates robotics applications and research by eliminating the need to design, manufacture and Integrate a complex robotic system.

What’s Included

	Research & Development Kit – Pro
	Nvidia Xavier ARM v8.2 64 CPU 512 Tensor Core Volta GPIJ 32 GB 256 LPDDR4x 32 GBeMMC5.1 HDMI 2.0sUSB 3.1s RJ45
	VLP16 Lidar 3600 horizontal scanning and 0.1-0.40 angular resolution ±150 Vertical scanning and 20 angular resolution 5-20Hz scanning frequency, up to 300,000 point-data/S output and 01-100m ranging radius IP67 protection level and ultra-long service life
	Portable 11.6 inch monitor 480g/8mm ultra-thi 1920*1080P USB Type-C direct connection

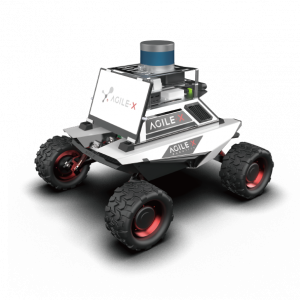

	Scout Mini platform

Full integration (Hardware / Software / Mounting)

Pre-installed with Linux and ROS Ubuntu 18.4
Pre-installed hardware drivers allowing all sensors to be controlled by onboard PC.
Fully integrated sensor mounting plates. Methodically designed for highest IP rating, and best placement of sensor. Allows for easy access and additional integration of new components.
Compatible with Scout Mini, Tracer, SCOUT 2,0 and BUNKER.

Onboard open source SLAM based mapping

Development tools include viz, Gazebo and Nomachine. Communication (Ros) nodes are provided for mapping and navigation.
