Descrição

Características principais

✅ 128-Channel High Resolution – Industry-leading vertical resolution for detailed 3D mapping and object recognition.
✅ Long-Range Performance – Up to 120m range (10% reflectivity) with reliable accuracy.
✅ Digital LiDAR Technology – Built on Ouster’s proprietary SPAD (Single-Photon Avalanche Diode) detectors for superior performance in varying lighting conditions.
✅ Dual Returns – Captures multiple returns per laser pulse for enhanced visibility through obscurants like fog, dust, and foliage.
✅ Wide Field of View – 90° vertical FOV (±45°) and 360° horizontal FOV for full surround perception.
✅ Compact & Rugged Design – Lightweight, IP68/69K-rated housing for durability in harsh environments.
✅ Real-Time Data Output – Low-latency, high-frequency (10-20 Hz) point cloud generation.
✅ Seamless Integration – Supports standard protocols (Ethernet, UDP, PTP) and APIs for easy integration with autonomy stacks.

Aplicações

• Autonomous Vehicles – Precise localization, obstacle detection, and path planning.

• Robotics & Drones – Navigation, SLAM, and environment modeling.

• Automação Industrial – LiDAR-guided machinery, warehouse robotics, and safety systems.

• Mapping & Surveying – High-definition 3D scans for GIS, construction, and urban planning.

Especificações

• Range: Up to 120m (10% reflectivity)

• Accuracy: ±2 cm

• Vertical Resolution: 128 channels

• Field of View: 90° (V) x 360° (H)

• Data Rate: Up to 2.6 million points per second

• Peso: ~ 590g

• Operating Temperature: -20°C to 60°C

• Power Consumption: ~ 14W

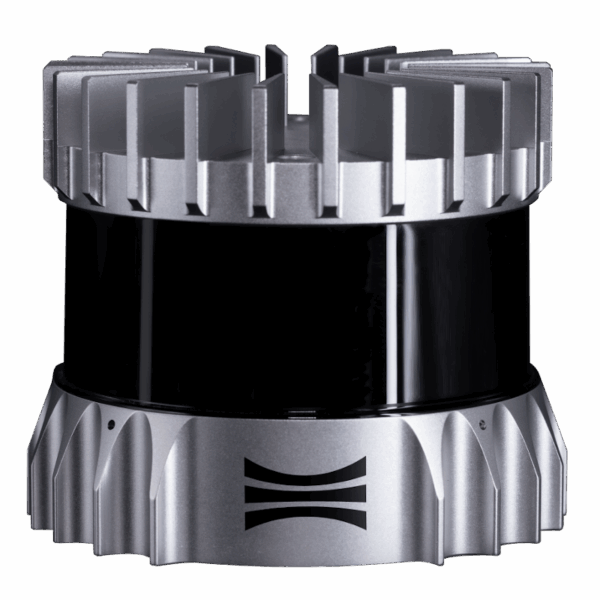

Why Choose the OS1-128?

The Ouster OS1-128 sets a new standard for high-resolution LiDAR, combining exceptional detail, long-range performance, and rugged reliability—making it ideal for demanding autonomy and perception applications.
