Descrição
Características principais
-
Ultra-Wide Vertical FOV (90°): Captures more data above and below the horizon, reducing blind spots.
-
32 Channels: High-resolution point cloud for precise object detection and navigation.
-
Short-Range Optimization: Optimized for 0.6m to 50m range, perfect for low-speed autonomy and indoor/outdoor applications.
-
Dual Returns: Enhances performance in challenging conditions (e.g., rain, fog, dust).
-

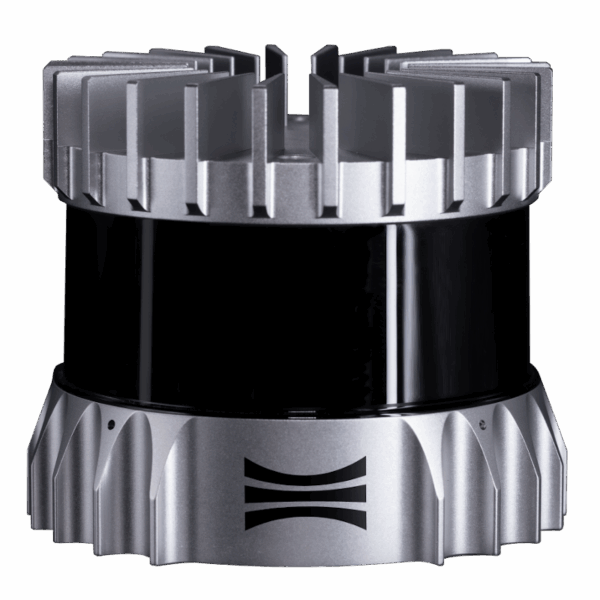

Compact & Lightweight: Rugged, IP68/69K-rated housing for durability in harsh environments.
-
Digital LiDAR Technology: Built-in processing for real-time data output (Ethernet or PTP synchronization).
-
Low Power Consumption: Efficient operation for embedded and mobile systems.
Aplicações
-
Autonomous Vehicles (last-mile delivery, AGVs, shuttles)
-
Robotics (warehouse automation, mobile robots)
-
Automação Industrial (safety systems, forklifts, monitoring)
-
Mapping & Surveying (indoor/outdoor 3D scanning)
Especificações
-
Range: 0.6m – 50m
-

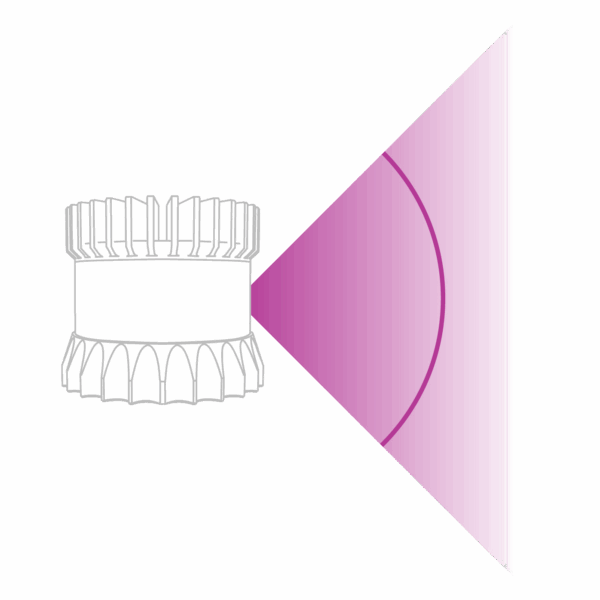

Vertical FOV: 90°
-
Horizontal FOV: 360°
-

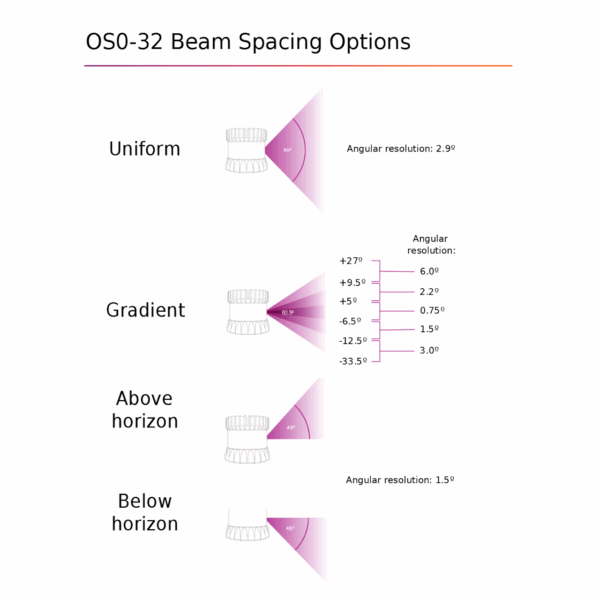

Angular Resolution: Customizable (standard: 2.8° vertical, 0.18° horizontal)
-
Accuracy: ±2cm
-
Data Output: Up to 10.8 million points per second
-
Dimensions: 85mm (H) x 85mm (W) x 78mm (D)
-
Peso: 590g
Why Choose the OS0-32?
The Ouster OS0-32 combines ultra-wide perception, high resolution, and reliability in a compact form factor, making it a top choice for developers needing rich environmental awareness in dynamic settings.
