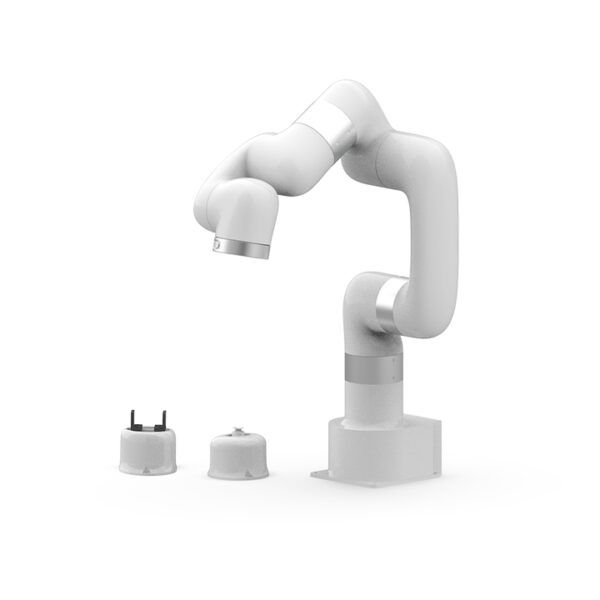

UFACTORY Lite 6 Kit

UFACTORY Lite 6 has 600 g payload and 0.5 mm repeatability. It is the most affordable 6 axis table-size robot arm on the market. It equips Direct-Drive motor and harmonic drive, which balance durability and cost. Lite 6 perfectly fits space saving tasks which are not high-accuracy sensitive.

3.639,00 € Exc.VAT (4.475,97 € Inc. 23% VAT)

Available on backorder

ENQUIRY!

Set the initial stock amount from here

Categories: Arms, Arms & Grippers, Ufactory Tags: arm, Lite 6 Kit, lite6, ufactory

Description

Features

Graphical Programming	Hand Teaching	Self-Collision Free	Safety Boundary	Trajectory Recording
Offline Task	Python	ROS/ROS2	3D Simulation	Collision Detection

Robots Comparison

Product	Lite6	xArm 5 Lite	xArm 6	xArm 7
Payload	600 g	3 kg	5 kg	3.5 kg
Reach	440 mm	700 mm	700 mm	700 mm
Degree of freedom	6	5	6	7
Repeatability	±0.5 mm	±0.1 mm	±0.1 mm	±0.1 mm
Maximum Speed	500 mm/s	1 m/s	1 m/s	1 m/s
Weight（robot arm only）	7.2 kg	11.2 kg	12.2 kg	13.7 kg

Technical Specifications

- 6-Axis
- Payload 600 g
- Reach 440 mm
- Repeatability 0.5 mm
- Max Speed 500 mm/s
What’s in the box:
- Lite 6 robot*1
- Gripper Lite*1
- Vacuum Gripper Lite*1
- Integrated Control Box
- Ethernet Cable
