Description
Technical Specifications
| Model | Neos |
| Dimensions L x W x H | 840 × 626 × 338 mm |
| Turning radius | 1.34 m |
| Ground clearance | 135 mm |
| Weight | 47 kg |
| Payload | 50 kg (10°) / 80 kg (5°) |
| Speed | 20 km/h |
| Max slope | 10° |
| Max obstacle height | 100 mm (unloaded) |
| Steering | Ackermann |
| Runtime [1] | 5 – 8 h |
| Motors | 2 × 350 W |
| Encoder | 4096 |
| Batteries | 48 V / 15 Ah |
| Time to charge | 3.5 h |
| Interface | CAN (USB optional) |
| Ingress protection | IP42 (IP65 optional) |
| Operating temperature | 0 °C to 40 °C |
[1] The runtime is strongly influenced by the working conditions. Errors and technical modification subject to change.

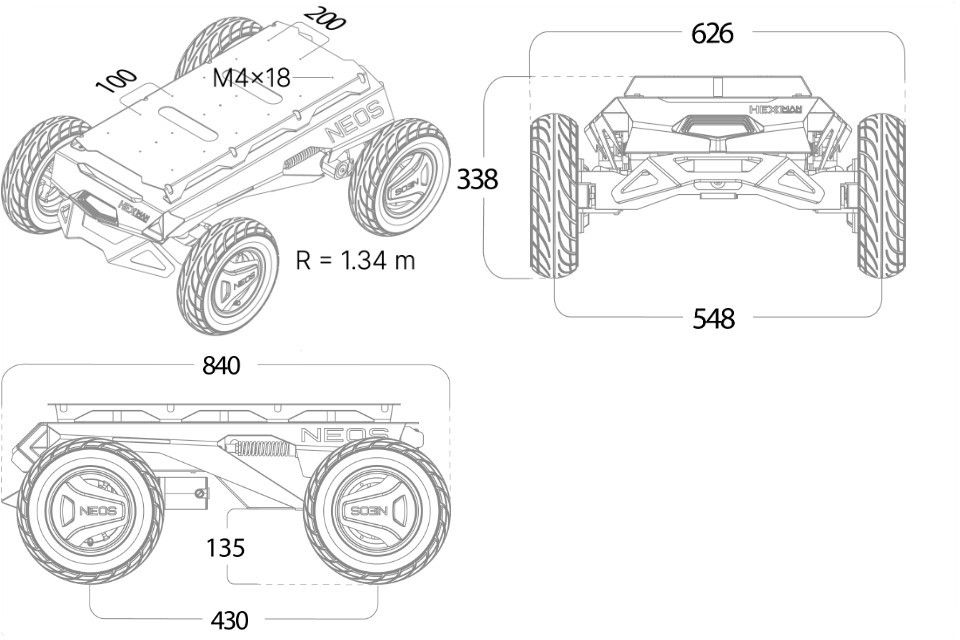

Dimensions
