Echo Ed

Echo Ed has a reduced carrying capacity and is suitable for research and teaching.

Set the initial stock amount from here
Categories: , , Tags: ,

Description

SPECIFICATIONS

Model Echo Ed

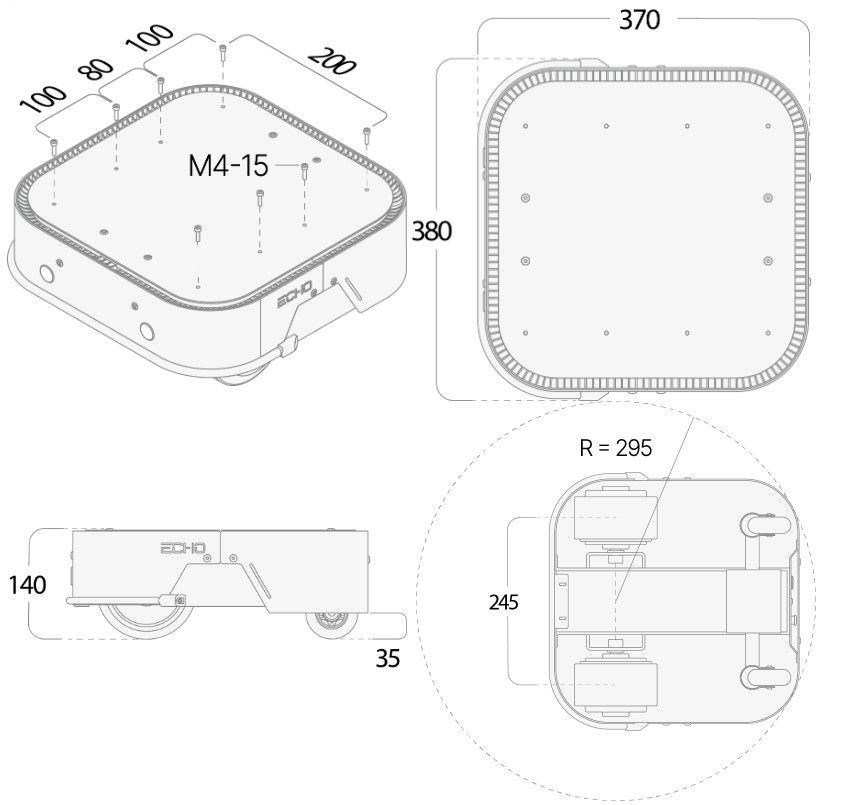

Dimensions L x W x H 370 × 380 × 140 mm
Turning radius 295 mm
Ground clearance 35 mm
Weight 13 kg
Payload 30 kg
Speed 2 m/s
Max slope
Max obstacle height (unloaded) 10 mm
Steering 2 differential wheels,
2 following wheels
Runtime [1] 3 – 5 h
Motors 2 × 100 W
Encoder 4096
Batteries 24 V / 5 Ah
Time to charge 3 h
Interface CAN
Ingress protection IP22
Operating temperature 0 °C to 40 °C

[1] The runtime is strongly influenced by the working conditions. Errors and technical modification subject to change.
