Description
About ORCS Mini
Use scenarios: indoor
Communication interface: standard CAN
Operating Temperature: 0~60°C
Dimensions (L x W x H): 430×365×170 mm
Rotation radius: 268 mm Ground clearance: 69 mm
IP level: IP22
Empty weight: 7.2 kg, payload: 5 kg
Maximum speed: 2 km/h
Battery life: 3~5h Power output: 24V battery
Maximum tilt angle: 12°
Technical Specifications
| Scenarios | Indoor |
| Dimensions (L,W,H) | 430×365×170 mm |
| Rotation Radius | 268 mm |
| Ground Clearance | 69 mm |
| Empty Weight | 7.2 kg |
| Rated Load | 5 kg |
| Max Speed | 2.0 m/s |
| Max Climbing Angle | 12° |
| Obstacle Crossing Height | Empty load 20 mm |
| Motion Mode | Mecanum wheel |
| Brake | Electronic brake |
| Suspension | Front swing arm suspension |
| Battery Life | 3~5h |
| Motors | 4×38W BLDC |
| Encoders | 4096 line |
| Battery Parameters | 24V 5Ah |
| Charging Time | 3 h |
| Charger | AC 220V Charger |
| Power Output | Bat. passthrough |
| Communication | CAN |
| IP Level | IP22 |
| Working Temperature | 0~60℃ |

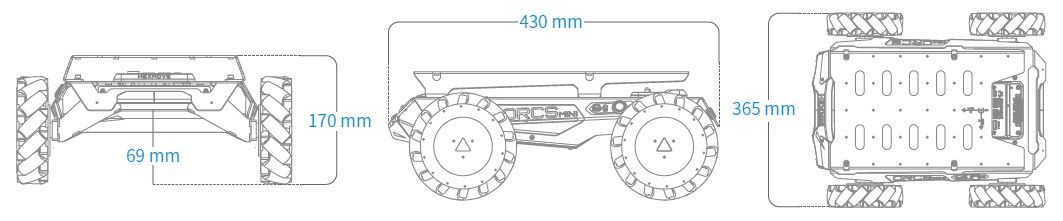

Dimensions
Software Support
