Description

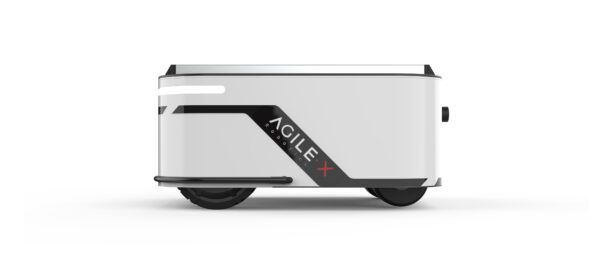

Small Indoor AGV
It can carry 50kg for efficient indoor movement, making it a cost-effective, versatile choice for universities and businesses. An ideal platform for quick ROS setup, smart applications, teaching, projects, it excels for robot development and indoor tasks.
Simple and Effective
TRACER MINI has a swing-arm suspended steel body and a two-wheel drive with omni-directional wheels for differential rotation. This design empowers it to handle small slopes and excel on standard outdoor roads.

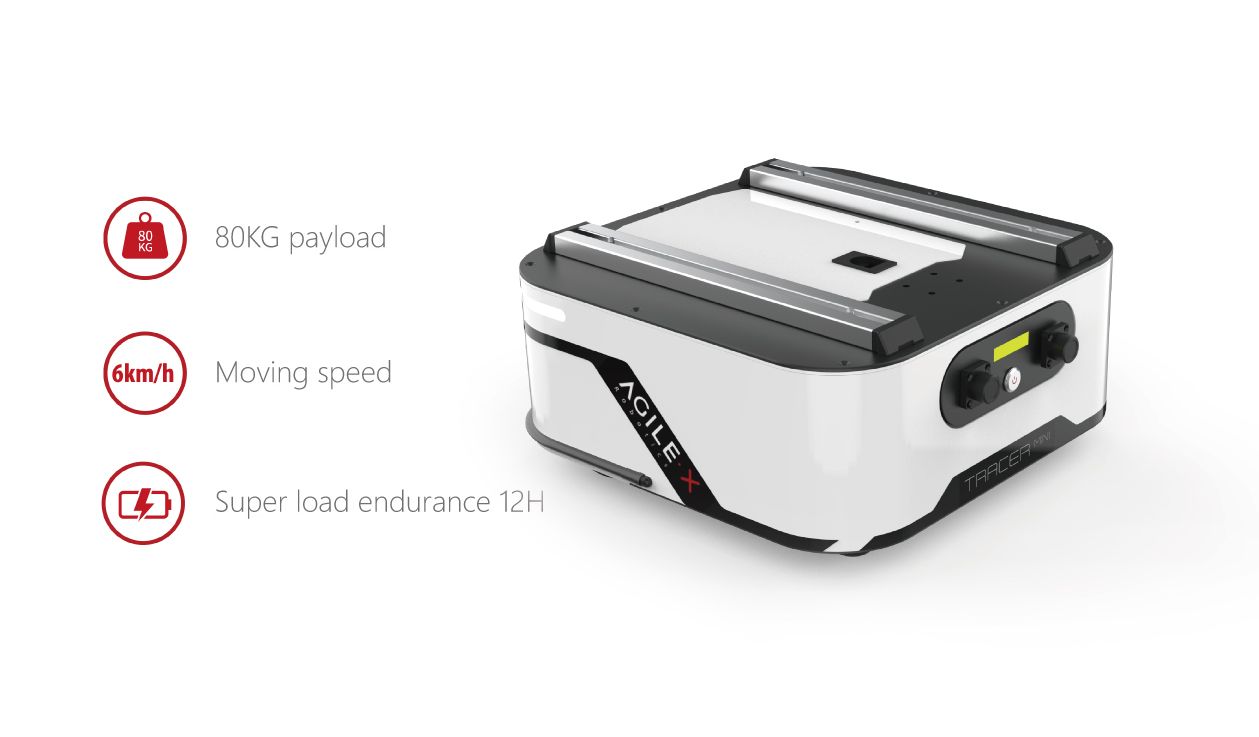

Compact Design with Big Payload
TRACER MINI boasts a sturdy power system along with a substantial load capacity. This combination allows for convenient handling of automated material transportation processes.
Expansion and Secondary Development
TRACER MINI allows users to establish connections using the CAN bus protocol. It’s also complemented with an open-source SDK and software resources.
Technical Params
Dimensions (WxHxD)
420mmX412mmX195mm
Weight
18Kg-20Kg
MAX Speed
1.5m/s
Minimum Ground Clearance
30mm
Playload
40KG
Climbing Ability
<15°
Battery
24V/15Ah
Suspension form
Front Drive Rear Swing Suspension
Protection Level
P22
Certification
\
EN
PT
ES
