Hexmove Trigger-A

TRIGGER-A is an omnidirectional wheel chassis. Adopting large-sized omnidirectional wheels , smooth movement and strong passability, with a three wheel layout structure, it can move in all directions or rotate in place, suitable for indoor narrow space movement. Can be equipped with a robotic arm as a humanoid robot base.

8.214,00 € Exc.VAT (10.103,22 € Inc. 23% VAT)

Available on backorder

ENQUIRY!

Set the initial stock amount from here

Categories: Chassis, Hexmove, Professional Tags: chassis, hexmove, Trigger-A

Description

Technical Specifications

Scenarios	Indoor/Outdoor Non Off Road

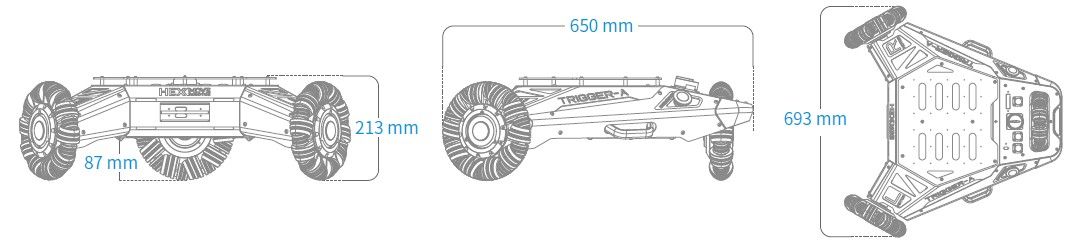

Dimensions (L,W,H)	650×693×213 mm
Rotation Radius	756 mm
Ground Clearance	87 mm
Empty Weight	30 kg
Rated Load	50 kg
Max Speed	2 m/s
Max Climbing Angle	10°
Obstacle Crossing Height	Empty load 30 mm
Motion Mode	Three omnidirectional wheels
Brake	Electronic brake
Module	RGB light/IMU (optional)/Charging module (optional)
Battery Life	3~8h
Motors	3×100W BLDC
Encoders	4096 line
Battery Parameters	48V 10Ah / 20Ah(optional)
Charging Time	2~4 h
Charger	AC 220V Charger
Power Output	Bat. passthrough / 24V Reg.
Communication	CAN
IP Level	IP42
Working Temperature	0~60℃
