Description
SPECIFICATIONS

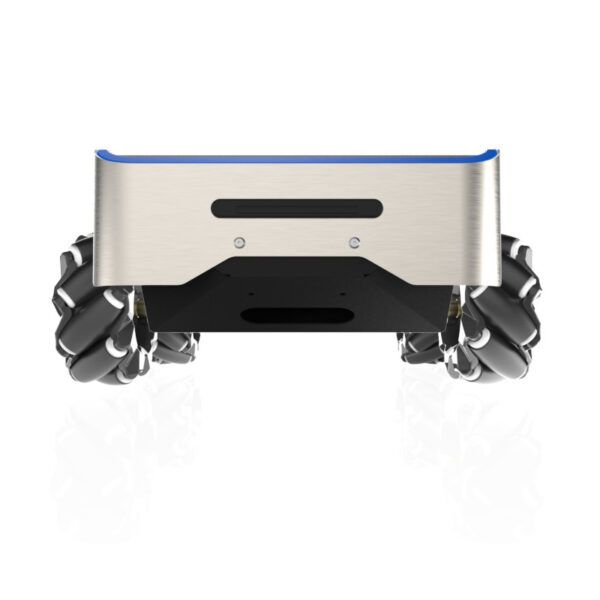

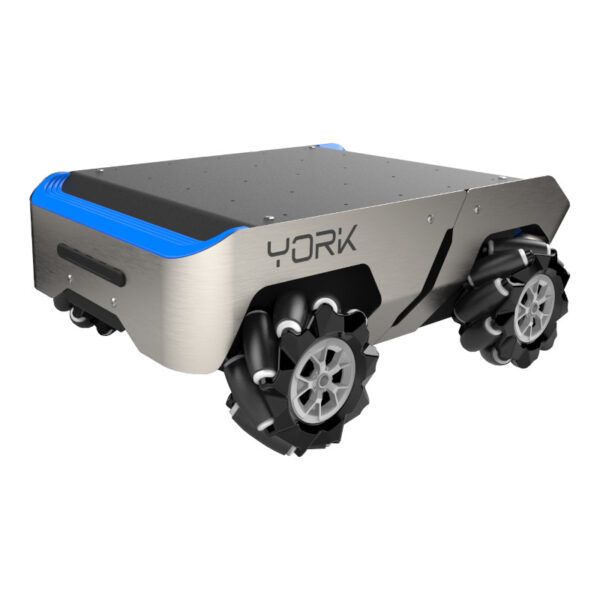

| Model | York MCNM |
| Dimensions L x W x H | 380 × 280 × 138 mm |
| Turning radius | 210 mm |
| Ground clearance | 32 mm |
| Weight | 3.5 kg |
| Payload | 4 kg |
| Speed | 0.5 m/s |
| Max slope | 10° |
| Max obstacle height | 10 mm (unloaded) |
| Steering | Mecanum |
| Runtime [1] | 3 – 5 h |
| Motors | 4 × 11 W |
| Encoder | 990 |
| Batteries | 24 V / 5 Ah |
| Time to charge | 3 h |
| Interface | CAN |
| Ingress protection | IP22 |
| Operating temperature | 0 °C to 40 °C |
[1] The runtime is strongly influenced by the working conditions. Errors and technical modification subject to change.
