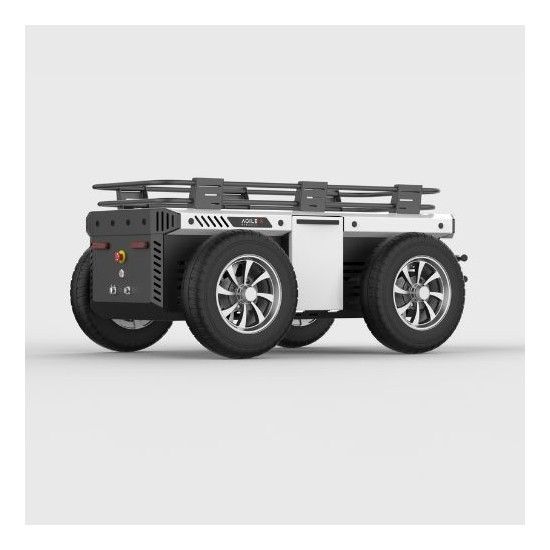

Description
Technical Specifications
| Type | Parameter | Data |
| Mechanical Parameters | Dimensions（mm） | 1550X980X710 |
| Wheelbase(mm) | 860 | |
| Front/Rear Wheel Track(mm) | 854 | |
| Weight(Kg) | 280kg | |
| Battery Type | One Lithium Battery 48V 24Ah (Supports 2 batteries) | |
| Power Drive Motor | Permanent Magnet Synchronous DC Motor 2*1000W | |
| Steering Drive Motor | DC Servo Motor 2*400W | |
| Drive Gearbox | 1:23 | |
| Steering Gearbox | 1:40 | |
| Parking Method | DC Electromagnetic Brake | |
| Steering | Front/Rear Wheel Ackermann | |
| Encoder | Incremental Magnetic Encoder 1024 | |
| Max Inner Wheel Steering Angle | 21° | |
| Performance Parameters | Max Speed (Empty)(m/s） | 3 |
| Mini Turning Radius(m) | 1.9 | |
| Max Climbing Ability | 10° | |
| Mini Ground Clearance（mm） | 160 | |
| Operating Temperature | -10~45C° | |
| Max Obstacle Clearance Height | 120mm | |
| Payload | 300kg | |
| Control Parameters | Control Mode | Remote Control |
| Remote Control | 2.4G / Max Distance 100m | |
| Communication Interface | CAN |
