Description
SPECIFICATIONS
| Model | Echo Plus |

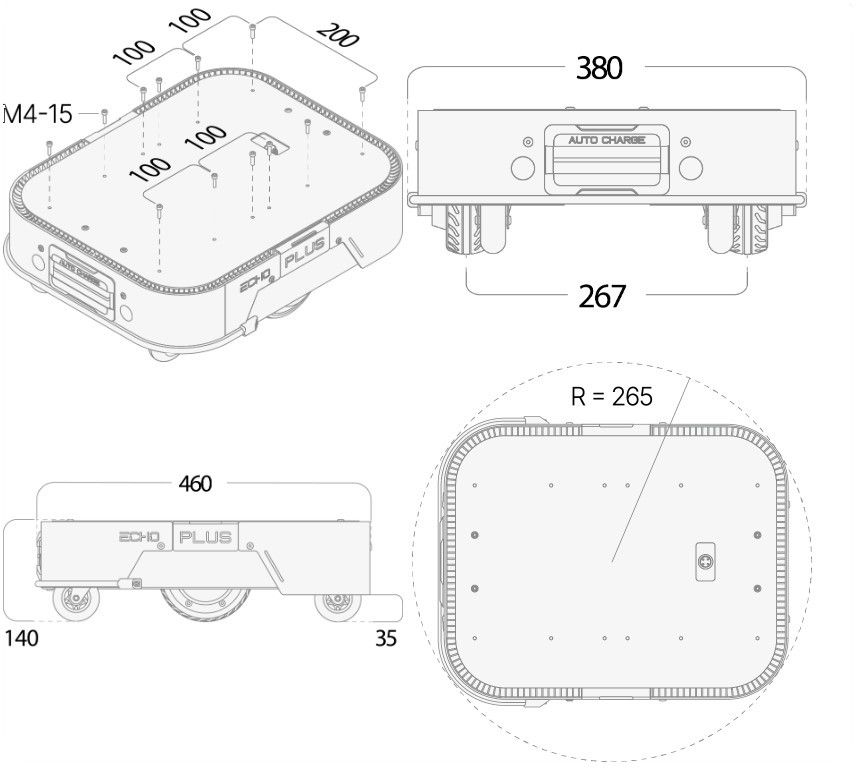

| Dimensions L x W x H | 460 × 380 × 140 mm |
| Turning radius | 265 mm |
| Ground clearance | 35 mm |
| Weight | 16 kg |
| Payload | 50 kg |
| Speed | 2 m/s |
| Max slope | 5° |
| Max obstacle height (unloaded) | 10 mm |
| Steering | 2 differential wheels, 4 following wheels |
| Runtime [1] | 8 – 10 h |
| Motors | 2 × 100 W |
| Encoder | 4096 |
| Batteries | 24 V / 10 Ah |
| Time to charge | 5 h |
| Interface | CAN |
| Ingress protection | IP22 |
| Operating temperature | 0 °C to 40 °C |
[1] The runtime is strongly influenced by the working conditions. Errors and technical modification subject to change.
