Description

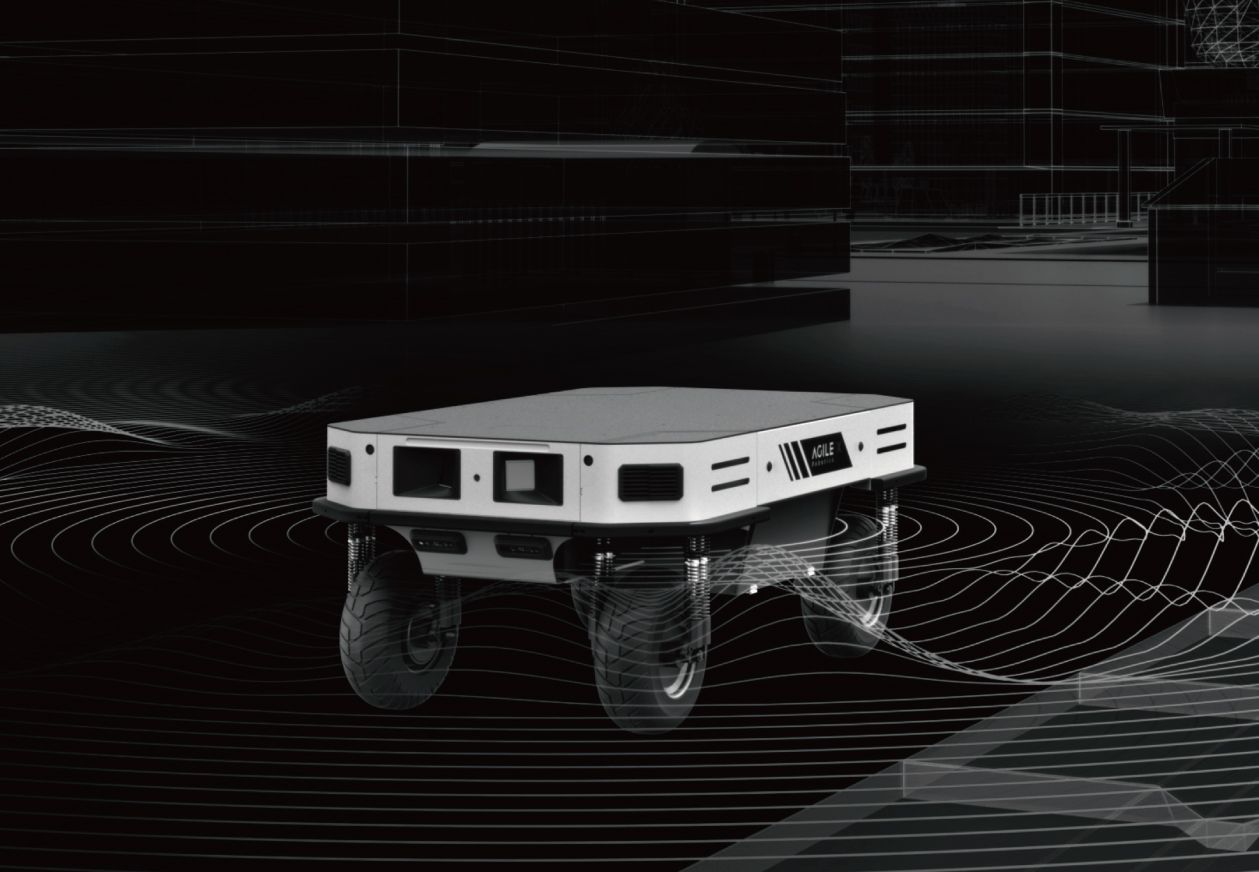

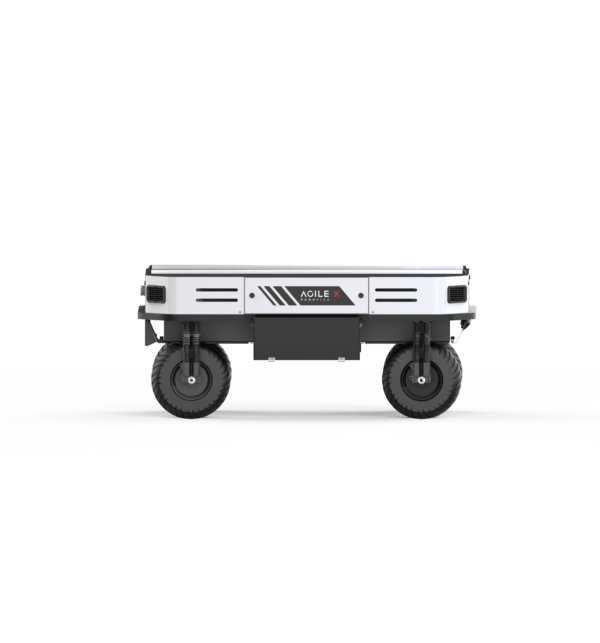

4WD Omnidirectional Mobile Robot

The Ranger is an exceptional omnidirectional robot designed to effortlessly navigate both indoor and outdoor environments, adapting to their dynamic nature. Moreover, it excels in carrying substantial payloads with ease.

Smart Integrated Structure

The Ranger has advanced sensors like a GPU, LiDAR, camera, and IMU for efficient environment assessment. It also supports various interfaces, making it compatible with popular hardware and application development .

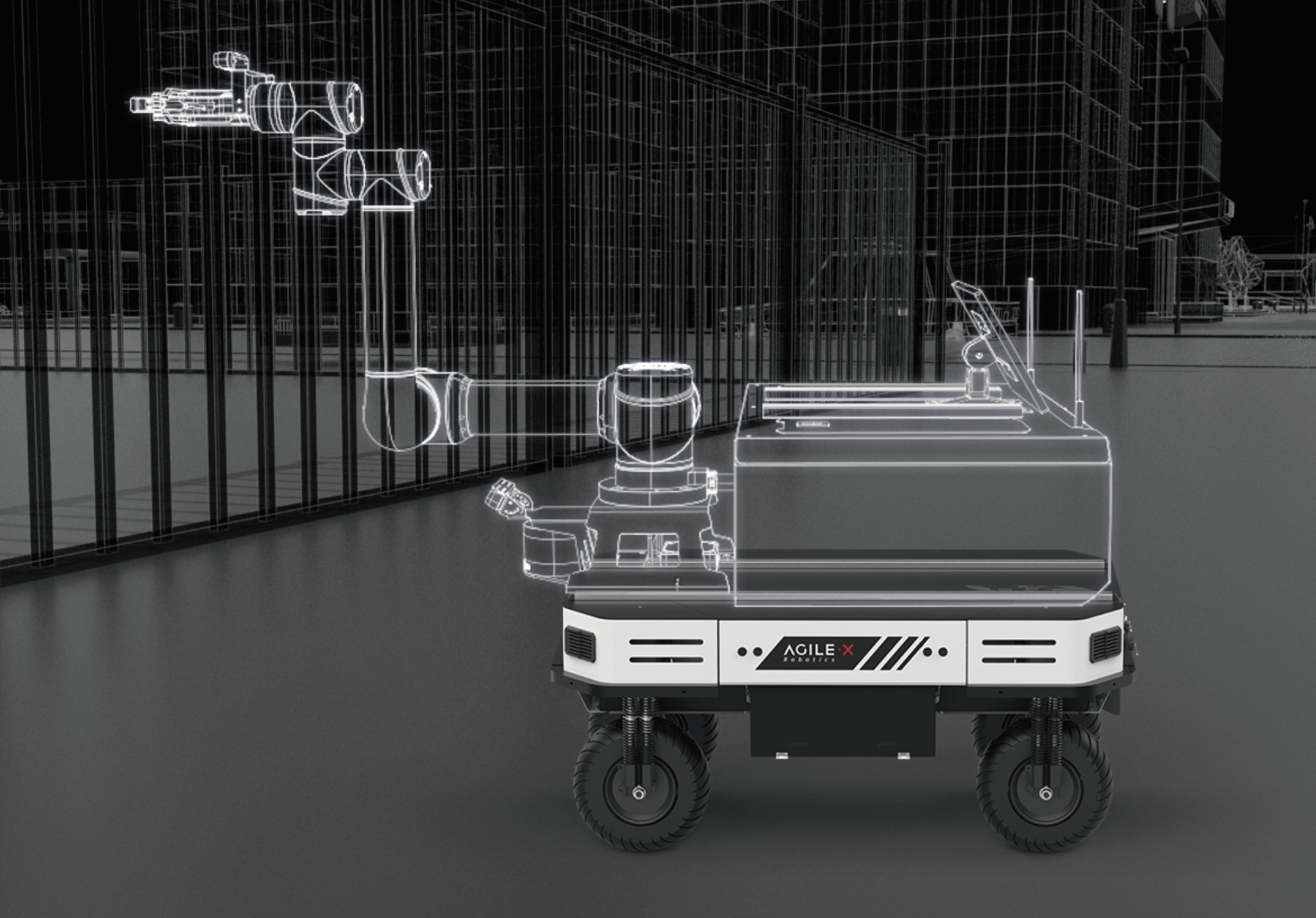

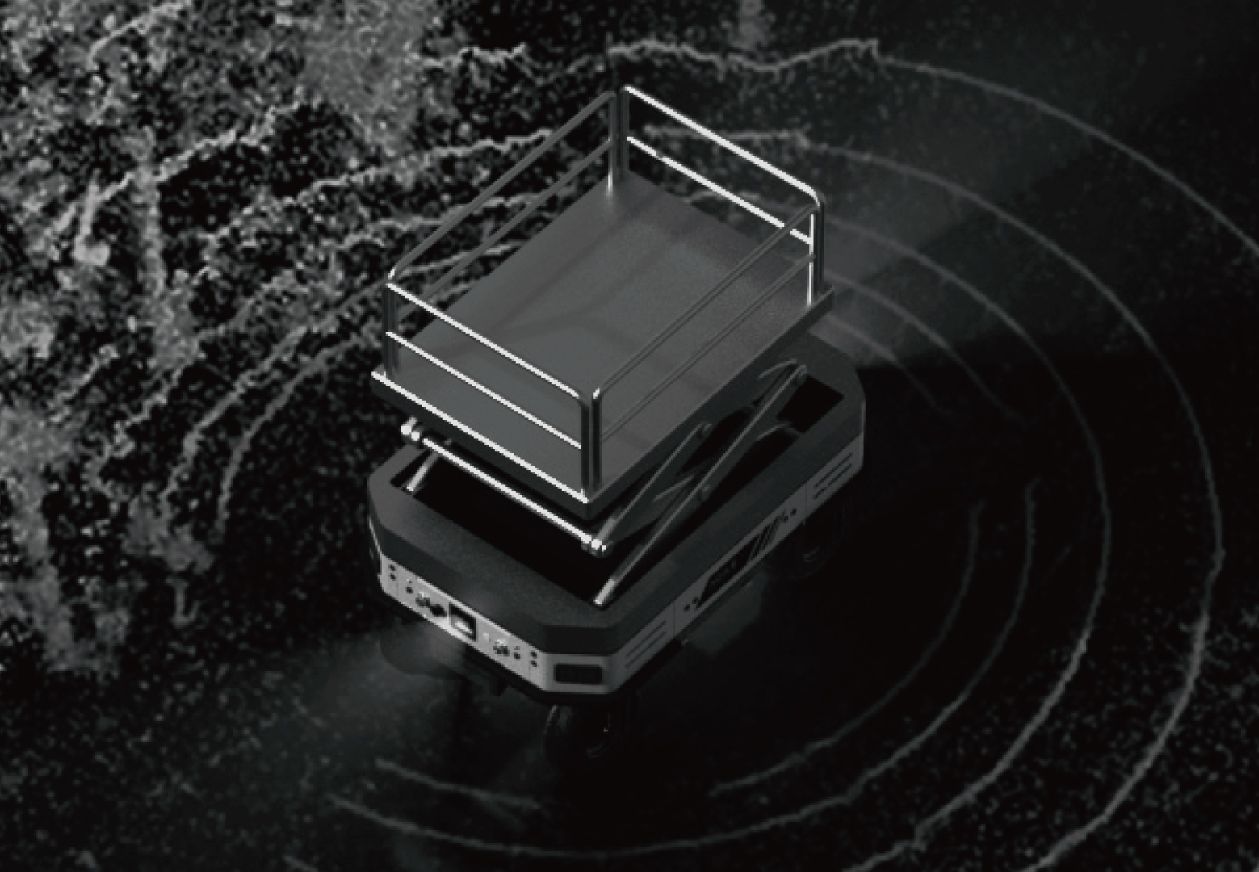

Modular free Combination

The Ranger is a sturdy, long-lasting and minimalist design with a carrying capacity of 150 KG. Users can easily create their own products by combining modules freely.

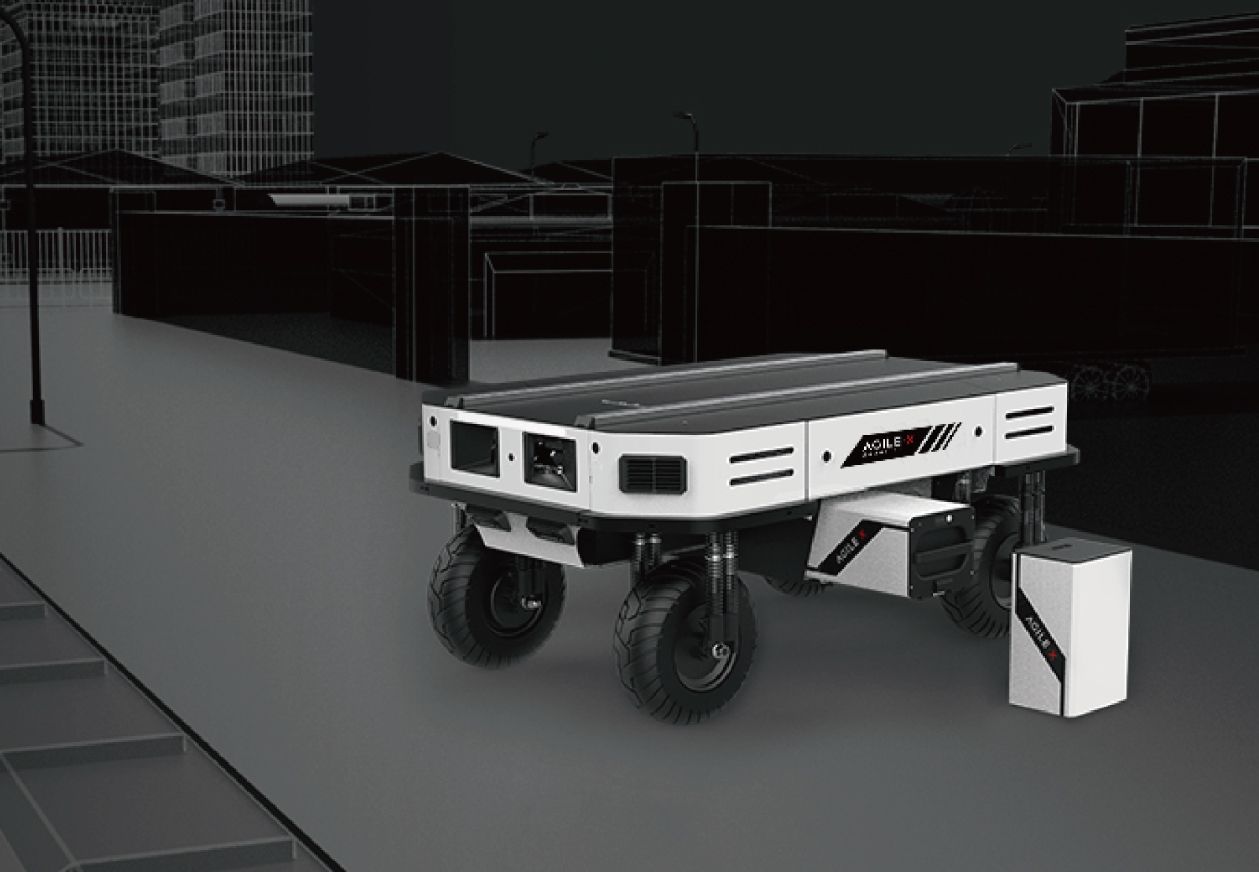

Modular UPS with Hot-swapping Support

Hot-swapping allows users to swiftly replace batteries in a running system, making robot maintenance easier and battery replacement quicker.

Unmanned Safety Interaction

The Ranger is equipped with LiDAR, camera, and ultrasonic sensors for all-around perception. It can detect obstacles from all directions, making it suitable for indoor and outdoor scenes like industrial parks, parks, parking garages, etc.

Intelligent algorithm for navigation and multi-point path planning

Ranger uses intelligent scheduling and advanced map technology to autonomously plan and navigate, track lines, and efficiently complete operations with multi-point route planning.

Technical Params

180cm70kg

1228mmX876mmx520mm

100KG

560 MM

48V brushless geared motor

600W*4

22NM*4

2.6M/S

4WD

100mm

10

150KG

2-8H

1H(Single Battery)

Lithium Battery

48V 24Ah
(Support up to 4 batteries)

IP55
